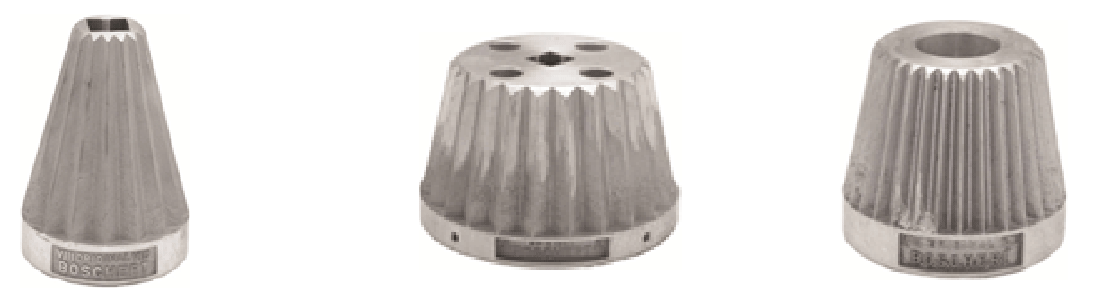

Our high-end casted aluminum reel cones are available for round or square (expanding) shafts. The reelcones are serrated and applicable for most (core) based converting applications.
The windingcones (reelcones) are divided in 2 groups, model I to VII and VIII to XIII.
WINDING CONES | OVERVIEW |
MODEL |
Core |
Inner |
Inner |
(L1) |
| I | 80-95 | 30-50 | 30/40 | 145 |
| II | 70-80 | 30-50 | 30/40 | 95 |
| III | 70-80 | 30-50 | 30/40 | 145 |
| IVA | 55-120 | 30-35 | 30 | 95 |
| IVB | 70-120 | >35-50 | 40 | 83 |
| V | 50-70 | 30-40 | 30 | 145 |
| VI | 145-160 | 30-80 | 30/40/50 | 150 |
| VII | 125-150 | 30-60 | 30/40/50 | 145 |
MODEL |
Core |
Inner |
Inner |
(L1) |
| VIIIA | 60-120 | 30-40 | 30 | 185 |
| VIIIB | 68-120 | >40-50 | 40 | 168 |
| IX | 120-180 | 30-70 | 40/50 | 185 |
| X | 225-280 | 30-80 | 40/50 | 185 |
| XI | 275-330 | 40-100 | 40/50 | 185 |
| XII | 75-180 | 30-50 | 30/40 | 155 |
| XIII | 165-215 | 30-60 | 30/40 | 185 |
DOWNLOAD Technical datasheet
Notes and Recommendations
- Ordering # MF-BOC-2015X-Y (X=model number, Y= inner bore diameter or inner square dimensions)
- Inner squares represent a higher unitprice compared to the cones with inner round bore.
