BRAKES | C/VT SAFETYCHUCKS ADDITIONAL BRAKES

SAFETY CHUCK

ESB

DSB

M500

M1500

M3000

Max. Nm. Max. Nm. Max. Nm. Max. Nm. Max. Nm.
C/VT 14-20 30/30 n/a n/a n/a n/a
C/VT 19-25 40/29 n/a n/a n/a n/a
C/VT 22-30 40/29 n/a 50/36 80/58 120/87
C/VT 30-40 40/29 200/140 50/36 80/58 120/87
C/VT 40-50 50/36 200/140 50/36 80/58 120/87
C/VT 50-80 n/a 200/140 50/36 80/58 120/87

- The ESB and DSB second values show max. Nm. with membrane cylinder
- The M500/1500/3000 values show max. Nm. per calliper.

BRAKES | SLIDING CHUCKS ADDITIONAL BRAKES

SLIDING CHUCK

ESB

DSB

M500

M1500

M3000

Max. Nm. Max. Nm. Max. Nm. Max. Nm. Max. Nm.
22-30 40/29 n/a 50/36 80/58 120/87
30-40 40/29 200/140 50/36 80/58 120/87
40-50 50/36 200/140 50/36 80/58 120/87

- The ESB and DSB second values show max. Nm. with membrane cylinder
- The M500/1500/3000 values show max. Nm. per calliper.

BRAKES | PNEUMATIC CHUCKS ADDITIONAL BRAKES

PNEUMATIC CHUCK

ESB

DSB

M500

M1500

M3000

Max. Nm. Max. Nm. Max. Nm. Max. Nm. Max. Nm.
P40 40/29 200/140 50/36 80/58 120/87
P50 50/36 200/140 50/36 80/58 120/87


BRAKES | AUTOMATED CHUCKS ADDITIONAL BRAKES

AUTOMATED CHUCK

ESB

DSB

M500

M1500

M3000

Max. Nm. Max. Nm. Max. Nm. Max. Nm. Max. Nm.
A40 40/29 200/140 50/36 80/58 120/87
A50 50/36 200/140 50/36 80/58 120/87
A80 n/a 200/140 50/36 80/58 120/87

- The ESB and DSB second values show max. Nm. with membrane cylinder
- The M500/1500/3000 values show max. Nm. per calliper.


Notes and Recommendations


! All brakesystems have their own journal specification. As per example, DSB brake does not fit ESB type safetychuck.

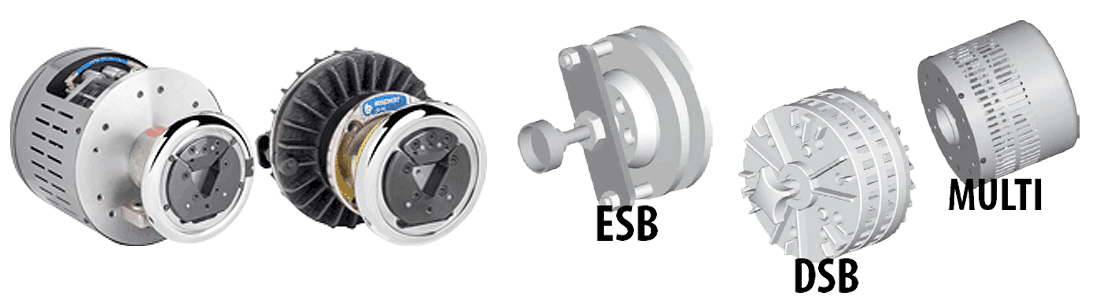

ESB BRAKES | BASIC CHARACTERISTICS


- Max. Brake Torque 50 Nm.
- Available on all chucks except A80.
- Available as single disc manual / pneumatic or with membrane cylinder I.

DATASHEET ESBm 14-20 (mini) BRAKES

DATASHEET ESB BRAKES


DSB BRAKES | BASIC CHARACTERISTICS


- Max. Brake Torque 440 Nm.
- Available on all chucks except chucks smaller than 30-40 series.
- Available as double disc manual / pneumatic or with membrane cylinder I and cylinder II.

DATASHEET DSB BRAKES


MULTI BRAKES | BASIC CHARACTERISTICS


- Max. Brake Torque 300 Nm. up to 1200 Nm.
- Available on all chucks except chucks smaller than 22-30 series.
- Available as M500 (max. 6 callipers), M1500 (max. 8 callipers), M3000 (max. 10 callipers).

DATASHEET MULTI MODULAR BRAKES
